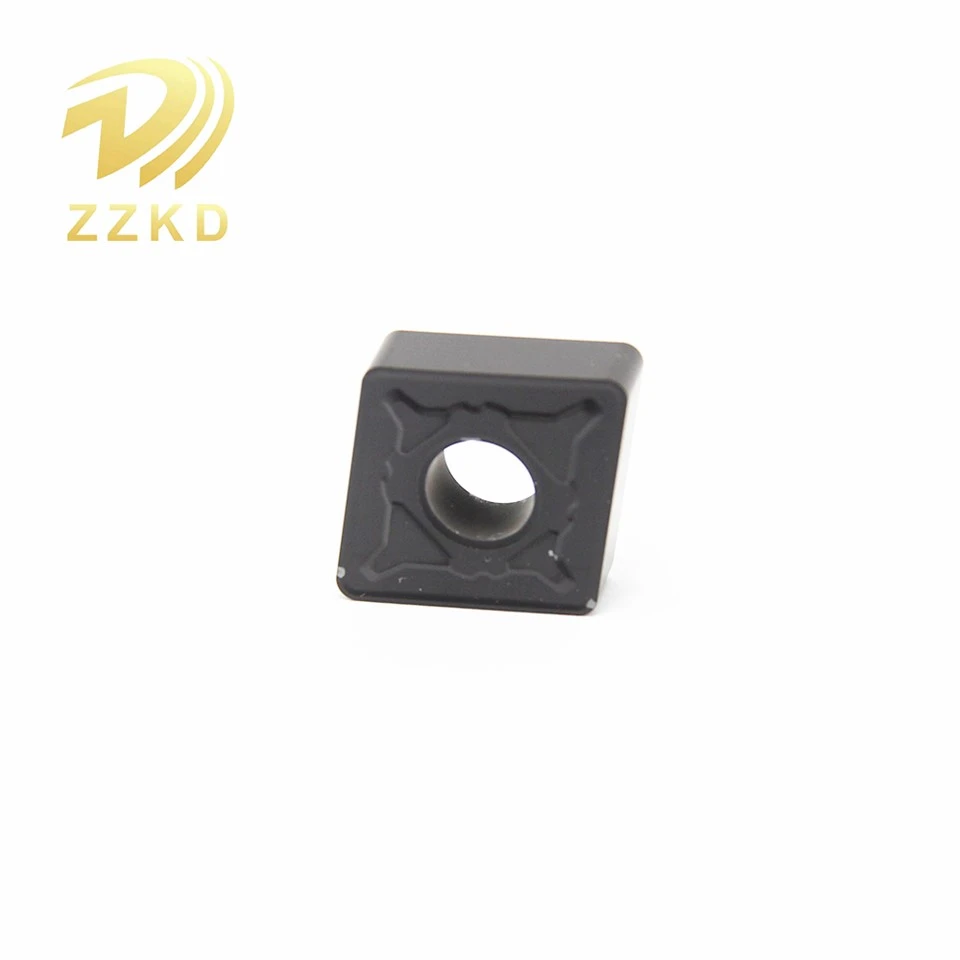

Kingdon Heavy Duty Inserts are engineered for extreme roughing, high-volume material removal, and demanding intermittent cutting. Featuring robust CNHX, LNKX, and RCMX series, these inserts utilize tough substrates and impact-resistant PVD/CVD coatings to withstand high mechanical loads and thermal shock. With precise dimensions (L 10.00–19.05 mm, S 3.18–9.52 mm, Re 0.8) and secure mounting holes (Φd 3.40–6.35 mm), they deliver maximum durability and cost-efficiency in steel, stainless, and cast iron applications.
The Engineering Behind Heavy Duty Machining
- Impact & Shock Resistance: Heavy duty operations often involve varying depths of cut and interrupted passes. Our substrates are micro-grain tungsten carbide with enhanced cobalt content, specifically designed to absorb cyclic impact without chipping or fracturing.
- Secure Clamping & Stability: The precise fixing holes (e.g., Φd 4.40 mm for CNHX, Φd 3.40 mm for LNKX) ensure a rigid connection to standard cutter bodies, preventing micro-movements that cause premature edge failure under high tangential forces.
- Optimized Chip Control Under Load: Even under aggressive feed rates, the specialized geometries of the RCMX (round) and CNHX (negative rhombic) series manage chip flow efficiently, preventing bird-nesting and ensuring smooth evacuation.
- Multi-Edge Economy: The LNKX and CNHX series offer multiple usable corners per insert, significantly lowering the cost-per-edge in high-consumption roughing environments.
|
Type |
尺寸Dimensions(mm) |
||||
|
L |
W |
H |
Фd |
R e |
|
|
175.32-191940-28 |
19.05 |
10.00 |
19.05 |
6.35 |
4 |
|
CNHX100508 K-M |
10.00 |
5.40 |
10.00 |
4.40 |
0.8 |
|
CNHX131108 K-M |
12.70 |
5.40 |
11.00 |
4.50 |
0.8 |
|
CNHX 160608 K-M |
16.00 |
6.40 |
12.00 |
6.10 |
0.8 |
|
LNKX1005K-M |
10.00 |
5.20 |
9.52 |
3.40 |
0.8 |
|
LNKX1206 K-M |
12.70 |
6.00 |
12.20 |
4.40 |
0.8 |
|
LNKX1506 K-M |
15.00 |
6.00 |
13.90 |
4.60 |
0.8 |
|
Type |
Dimensions(mm) |
|
|
S |
Фd |
|
|
RCMX1003MO |
3.18 |
3.60 |
|
RCMX1204MO |
4.76 |
4.40 |
|
RCMX1606MO |
6.35 |
5.50 |
|
RCMX2006MO |
6.35 |
6.50 |
|
RCMX2507MO |
7.94 |
7.20 |
|
RCMX3209MO |
9.52 |
9.50 |
Typical Applications
Heavy roughing of large cast iron engine blocks and cylinder heads.
High-depth material removal on forged steel components (e.g., crankshafts, gear blanks).
Demanding face and shoulder milling in the energy sector (turbine housings, valve bodies).
Interrupted cutting on stainless steel (304/316) and high-temp alloys.
ZZKD B2B Supply Terms
In-House Production: From powder blending to final edge preparation in Zhuzhou, ensuring batch consistency for heavy-duty grades.
Grade Recommendation: We map grades based on the machine's rigidity, material hardness, and depth of cut-not just the ISO code. Tell us your roughing parameters, and we provide the optimal substrate and coating combination.
OEM/ODM Flexibility: Laser marking, neutral/private label packaging, and mixed-series starter kits (CNHX + LNKX + RCMX) for distributor inventories.
Sample Availability: Free 5-piece sample sets for roughing validation on VMCs and boring mills.
Inquiry Format: Workpiece Material / Machine Type / Depth of Cut (ap) × Feed (f) → Receive insert code, grade, and sample plan within 2 working days.
