Product Overview

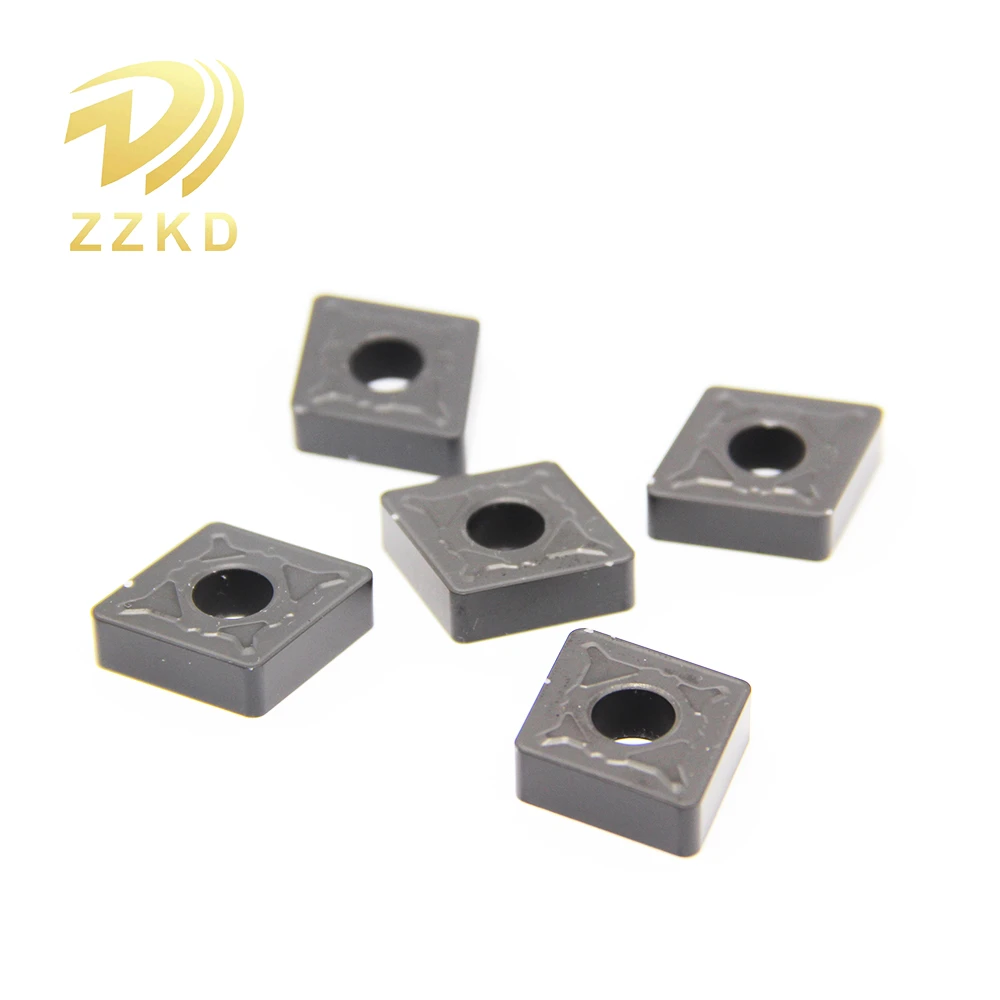

Steel turning is one of the most fundamental and frequent operations in metalworking, and insert selection directly impacts machining efficiency, per-part cost, and delivery reliability. Our General Turning Inserts for Steel are built on ultra-fine grain tungsten carbide substrates with advanced CVD/PVD multi-layer coatings, engineered specifically for turning carbon steel, alloy steel, tool steel, and cast steel - covering the full range from roughing to finishing operations.
Backed by Zhuzhou's position as China's hardmetal industrial hub and raw material advantage, ZZKD delivers consistent batch quality at highly competitive pricing to global clients across general machining, automotive components, mold & die manufacturing, construction machinery, and more.
Advantages
Wear Resistance and Tool Life, Elevated Together The CVD coating system (MT-TiCN + ultra-fine Al₂O₃) forms a dense protective layer in the high-temperature cutting zone, effectively suppressing flank wear and crater wear. The PVD coating (TiAlN) adds edge toughness and resistance to built-up edge formation. The two coating families cover high and medium-low cutting speed ranges respectively, keeping tool life stable under both continuous and interrupted cuts.
Substrate Design Balancing Toughness and Hardness The carbide substrate is engineered through optimized cobalt content and grain size distribution, maintaining high hardness while improving resistance to plastic deformation. Roughing grades prioritize toughness to absorb impact; finishing grades prioritize hardness for maximum wear resistance - customers can select by application condition.
Chip Control for Machining Safety Multiple chip-breaker geometries (finishing, semi-finishing, and roughing types) paired with appropriate feed and depth of cut deliver reliable chip breaking, preventing long chips from tangling around the workpiece or stalling the machine - especially critical for automated production lines and unattended machining.
Surface Quality and Efficiency, Optimized in Tandem Wiper geometry enables improved surface finish at standard cutting parameters, or maintained finish at substantially higher feed rates - shortening cycle time per part without compromising quality.
CN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
CNMG090304-PMK |
9.525 |
3.18 |
3.81 |
0.4 |
|
CNMG090308-PMK |
9.525 |
3.18 |
3.81 |
0.8 |
|
CNMG120404-PMK |
12.7 |
4.76 |
5.16 |
0.4 |
|
CNMG120408-PMK |
12.7 |
4.76 |
5.16 |
0.8 |
|
CNMG120412-PMK |
12.7 |
4.76 |
5.16 |
1.2 |
|
CNMG120416-PMK |
12.7 |
4.76 |
5.16 |
1.6 |
|
CNMG160608-PMK |
16.1 |
4.76 |
6.35 |
0.8 |
|
CNMG160612-PMK |
16.1 |
4.76 |
6.35 |
1.2 |
|
CNMG160616-PMK |
16.1 |
4.76 |
6.35 |
1.6 |
|
CNMG120404L/R-X |
12.7 |
4.76 |
5.16 |
0.4 |
|
CNMG120408L/R-X |
12.7 |
4.76 |
5.16 |
0.8 |
|
CNMG120412L/R-X |
12.7 |
4.76 |
5.16 |
1.2 |
|
CNMG120404 |
12.7 |
4.76 |
5.16 |
0.4 |
|
CNMG120408 |
12.7 |
4.76 |
5.16 |
0.8 |
|
CNMG120412 |
12.7 |
4.76 |
5.16 |
1.2 |
DN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
DNMG110404-PMK |
9.525 |
4.76 |
3.81 |
0.4 |
|
DNMG110408-PMK |
9.525 |
4.76 |
3.81 |
0.8 |
|
DNMG150404-PMK |
12.7 |
4.76 |
5.16 |
0.4 |
|
DNMG150408-PMK |
12.7 |
4.76 |
5.16 |
0.8 |
|
DNMG150412-PMK |
12.7 |
4.76 |
5.16 |
1.2 |
|
DNMG150604-PMK |
12.7 |
6.35 |
5.16 |
0.4 |
|
DNMG150608-PMK |
12.7 |
6.35 |
5.16 |
0.8 |
|
DNMG150612-PMK |
12.7 |
6.35 |
5.16 |
1.2 |
SN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
SNMG090304-PMK |
9.525 |
3.18 |
3.81 |
0.4 |
|
SNMG090308-PMK |
9.525 |
3.18 |
3.81 |
0.8 |
|
SNMG120404-PMK |
12.7 |
4.76 |
5.16 |
0.4 |
|
SNMG120408-PMK |
12.7 |
4.76 |
5.16 |
0.8 |
|
SNMG120412-PMK |
12.7 |
4.76 |
5.16 |
1.2 |
|
SNMG150612-PMK |
15.878 |
6.35 |
6.35 |
0.8 |
|
SNMG190612-PMK |
19.05 |
6.35 |
7.94 |
1.2 |
|
SNMG190616-PMK |
19.05 |
6.35 |
7.94 |
1.6 |
|
SNMG120404L/R-X |
12.7 |
4.76 |
5.16 |
0.4 |
|
SNMG120408L/R-X |
12.7 |
4.76 |
5.16 |
0.8 |
|
SNMG120412L/R-X |
12.7 |
4.76 |
5.16 |
1.2 |
|
SNMG120404 |
12.7 |
4.76 |
5.16 |
0.4 |
|
SNMG120408 |
12.7 |
4.76 |
5.16 |
0.8 |
|
SNMG120412 |
12.7 |
4.76 |
5.16 |
1.2 |
TN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
TNMG160404-PMK |
9.525 |
4.76 |
3.81 |
0.4 |
|
TNMG160408-PMK |
9.525 |
4.76 |
3.81 |
0.8 |
|
TNMG160412-PMK |
9.525 |
4.76 |
3.81 |
1.2 |
|
TNMG220404-PMK |
12.7 |
4.76 |
5.16 |
0.4 |
|
TNMG220408-PMK |
12.7 |
4.76 |
5.16 |
0.8 |
|
TNMG220412-PMK |
12.7 |
4.76 |
5.16 |
1.2 |
|
TNMG160404-PR |
9.525 |
4.76 |
3.81 |
0.4 |
|
TNMG160408-PR |
9.525 |
4.76 |
3.81 |
0.8 |
|
TNMG160412-PR |
9.525 |
4.76 |
3.81 |
1.2 |
|
TNMG160404L/R-X |
9.525 |
4.76 |
3.81 |
0.4 |
|
TNMG160408L/R-X |
9.525 |
4.76 |
3.81 |
0.8 |
|
TNMG160412L/R-X |
9.525 |
4.76 |
3.81 |
1.2 |
|
TNMG160404 |
9.525 |
4.76 |
3.81 |
0.4 |
|
TNMG160408 |
9.525 |
4.76 |
3.81 |
0.8 |
|
TNMG160412 |
9.525 |
4.76 |
3.81 |
1.2 |
VN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
VNMG160404-PMK |
9.525 |
4.76 |
3.81 |
0.4 |
|
VNMG160408-PMK |
9.525 |
4.76 |
3.81 |
0.8 |
|
VNMG160412-PMK |
9.525 |
4.76 |
3.81 |
1.2 |
|
VNMG160404 |
9.525 |
4.76 |
3.81 |
0.4 |
|
VNMG160408 |
9.525 |
4.76 |
3.81 |
0.8 |
|
VNMG160412 |
9.525 |
4.76 |
3.81 |
1.2 |
WN□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
WNMG060408-PMK |
9.525 |
4.76 |
3.81 |
0.8 |
|
WNMG060412-PMK |
9.525 |
4.76 |
3.81 |
1.2 |
|
WNMG080404-PMK |
12.7 |
4.76 |
5.16 |
0.4 |
|
WNMG080408-PMK |
12.7 |
4.76 |
5.16 |
0.8 |
|
WNMG080412-PMK |
12.7 |
4.76 |
5.16 |
1.2 |
|
WNMG080404-PR |
12.7 |
4.76 |
5.16 |
0.4 |
|
WNMG080408-PR |
12.7 |
4.76 |
5.16 |
0.8 |
|
WNMG080412-PR |
12.7 |
4.76 |
5.16 |
1.2 |
|
WNMG080404L/R-X |
12.7 |
4.76 |
5.16 |
0.4 |
|
WNMG080408L/R-X |
12.7 |
4.76 |
5.16 |
0.8 |
|
WNMG080412L/R-X |
12.7 |
4.76 |
5.16 |
1.2 |
|
WNMG080404 |
12.7 |
4.76 |
5.16 |
0.4 |
|
WNMG080408 |
12.7 |
4.76 |
5.16 |
0.8 |
|
WNMG080412 |
12.7 |
4.76 |
5.16 |
1.2 |
CC□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
CCMT060204-PMK |
6.35 |
2.38 |
2.8 |
0.4 |
|
CCMT060208-PMK |
6.35 |
2.38 |
2.8 |
0.8 |
|
CCMT09T304-PMK |
9.525 |
3.97 |
4.4 |
0.4 |
|
CCMT09T308-PMK |
9.525 |
3.97 |
4.4 |
0.8 |
|
CCMT120404-PMK |
12.7 |
4.76 |
5.56 |
0.4 |
|
CCMT120408-PMK |
12.7 |
4.76 |
5.56 |
0.8 |
DC□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
DCMT070204-PMK |
6.35 |
2.38 |
2.8 |
0.4 |
|
DCMT070208-PMK |
6.35 |
2.38 |
2.8 |
0.8 |
|
DCMT11T304-PMK |
9.525 |
3.97 |
4.4 |
0.4 |
|
DCMT11T308-PMK |
9.525 |
3.97 |
4.4 |
0.8 |
|
DCMT11T312-PMK |
9.525 |
3.97 |
4.4 |
1.2 |
SC□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
SCMT09T304-PMK |
9.525 |
3.97 |
4.4 |
0.4 |
|
SCMT09T308-PMK |
9.525 |
3.97 |
4.4 |
0.8 |
|
SCMT120404-PMK |
12.7 |
4.76 |
5.56 |
0.4 |
|
SCMT120408-PMK |
12.7 |
4.76 |
5.56 |
0.8 |
|
SCMT120412-PMK |
12.7 |
4.76 |
5.56 |
1.2 |
TC□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
TCMT090204-PMK |
5.56 |
2.38 |
2.5 |
0.4 |
|
TCMT090208-PMK |
5.56 |
2.38 |
2.5 |
0.8 |
|
TCMT110204-PMK |
6.35 |
2.38 |
2.8 |
0.4 |
|
TCMT110208-PMK |
6.35 |
2.38 |
2.8 |
0.4 |
|
TCMT16T304-PMK |
9.525 |
3.97 |
4.4 |
0.4 |
|
TCMT16T308-PMK |
9.525 |
3.97 |
4.4 |
0.8 |
VB□□
|
Type |
Dimensions(mm) |
|||
|
ØI.C |
T |
Фd |
Re |
|
|
VBMT160404-PMK |
9.525 |
4.76 |
4.4 |
0.4 |
|
VBMT160408-PMK |
9.525 |
4.76 |
4.4 |
0.8 |
|
VBMT160412-PMK |
9.525 |
4.76 |
4.4 |
1.2 |
Application Industries
Widely applied in automotive components (crankshafts, transmission shafts, wheel hub bearings), mold & die steel machining, general machinery manufacturing, hydraulic valves and fittings, fasteners, bearings, and other industries - covering both high-volume continuous-cut automated production and heavy-duty interrupted-cut roughing.
Company Strength
Zhuzhou Kingdon Industrial & Commercial Co., Ltd (ZZKD) was founded in 2004 and has been deeply engaged in high-performance tungsten, molybdenum, and carbide products for over 20 years. Located in the Zhuzhou High-Tech Industrial Park, Hunan, the factory covers 10,000 square meters and is equipped with advanced processing equipment and precision testing instruments, supported by a scientific management system and strict quality control process.
The core engineering team brings over 30 years of technical experience in the carbide industry, with in-house capability spanning substrate formulation, coating process, and geometry design. Leveraging Zhuzhou's advantage as China's non-ferrous metals and hardmetal industrial base, we offer products that combine quality with competitive pricing - backed by reliable delivery, careful packaging, and a strong business reputation built with long-term partners worldwide.
Customization Services
We provide end-to-end OEM/ODM support from selection consulting to sample validation:
- Recommend the optimal grade, chip-breaker, and insert model based on the customer's machining requirements;
- Support non-standard dimensions and special geometry customization;
- Provide free samples for on-machine testing and confirmation;
- Batch orders with stable quality and on-time delivery, packaging tailored to customer specifications.
