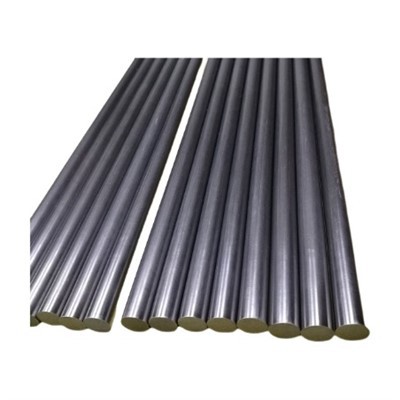

Copper Tungsten Bar has the advantage form both tungsten and copper
Tungsten Copper Bar, a refractory metal composite, is made from a combination of tungsten and copper or silver. The manufacturing process involves pressing the refractory material, sintering the pressed body at high temperature, and then infiltrating it with copper or silver. All steps are carried out under strictly controlled conditions. The result is a hard material with excellent arc and wear resistance, outstanding physical properties at high temperatures, and good electrical and thermal conductivity.
Good resistance for high temperature and arc erosion,high strength,high density,good electric and thermal conductivity,small thermal expansion,easy machining.It is widely used as electrodes of resistance welding and electric spark erosion cutting machines,arcing contacts and vacuum voltage breakers or vacuum interruptors.
Product Standard of Copper Tungsten Bar:
GB/T 8320-2003 or ASTM B 702-93
Our Services
Since our establishment in 2004, we are always dedicated to manufacutring high quality tungsten and molybdenum products. Now our oversea marketing network spread in USA,UK,Germany,India, Germany, Brazil, ,Poland,CZ,Slovenia,Singapore and etc.
Application of Copper Tungsten Bar
Electrical Contacts: Copper tungsten resists arc erosion while maintaining high electrical conductivity, making it an ideal material for electrical contacts in applications such as high-voltage and vacuum circuit breakers.
Welding Electrodes: They are used in various welding processes, such as resistance welding, flash butt welding, and projection welding, where their ability to withstand high temperatures and stresses is essential.
Electronic Packaging: It is a reliable electronic packaging material with good mechanical strength and excellent thermal management properties.
|
Class |
Impurity |
W |
Density(g/cm3) |
|
W90Cu10 |
0.5 |
Balance |
16.75 |
|
W85Cu15 |
0.5 |
Balance |
15.90 |
|
W80Cu20 |
0.5 |
Balance |
15.15 |
|
W75Cu25 |
0.5 |
Balance |
14.50 |
|
W70Cu30 |
0.5 |
balance |
13.80 |
|
W60Cu40 |
0.5 |
Balance |
12.75 |
|
W55Cu45 |
0.5 |
Balance |
12.30 |
|
W50Cu50 |
0.5 |
Balance |
11.85 |
